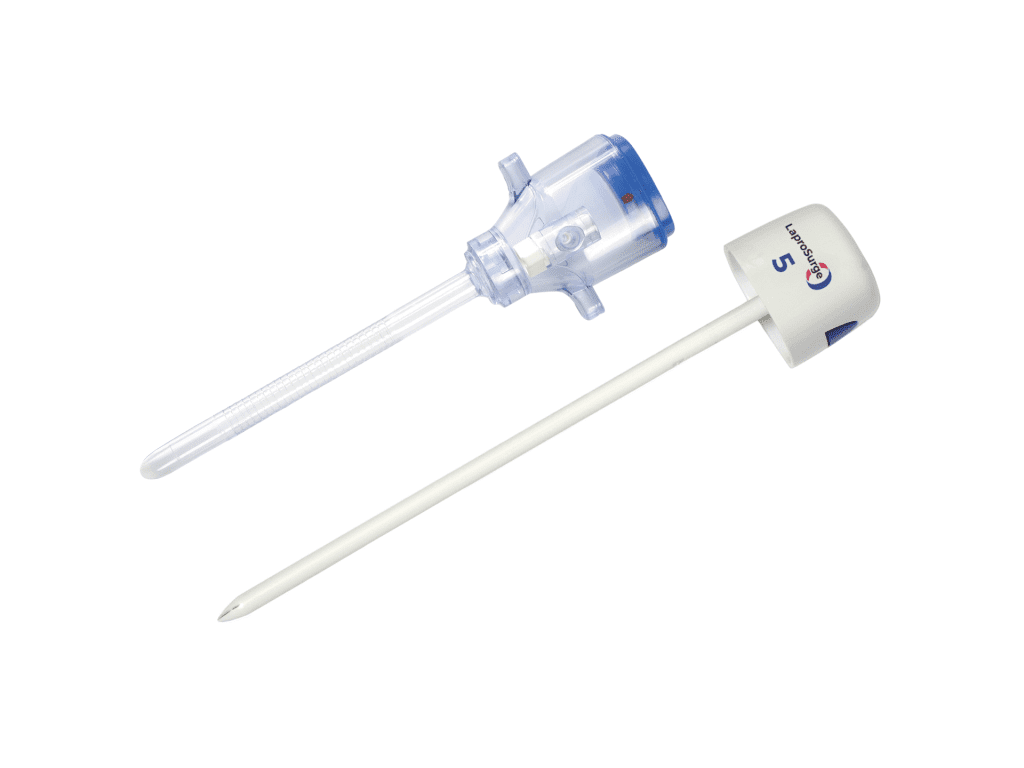

Bladeless Trocars
The bladeless trocar gently separates tissue layers instead of cutting, combining reduced tissue damage with good abdominal wall retention. The atraumatic lateral wings allow the user to apply low insertion force.
Features and benefits
- Dilating tip with atraumatic wings provides a low insertion force
- Sharp blade to cut through tissue layers
- Reduced peritoneal tenting during insertion
- Outer plastic sheath protects the blade when not in use
- Locking mechanism provides additional safety
- Available in 3mm, 5mm, 10/11mm, 12mm, and 15mm diameters
- Tyvek packaging reduces space and waste per procedure
| Product | Type | Code | Diameter | Cannula | Length | Pack | Box Quantity |
|---|---|---|---|---|---|---|---|
| Bladeless Trocar | Standard | EC3 SSB | 3mm | Smooth | 60mm | Single | 20 |
| Bladeless Trocar | Standard | EC3 SSB (GT) | 3mm | Smooth | 60mm | Single | 20 |
| Bladeless Trocar | Standard | EC3 SSBT (GT) | 3mm | Threaded | 60mm | Single | 20 |
| Bladeless Trocar | Standard | EC5 SSB | 5mm | Ribbed | 70mm | Single | 5 |
| Bladeless Trocar | Standard | EC5 DSB | 5mm | Ribbed | 70mm | Double | 5 |
| Bladeless Trocar | Standard | EC5 SLB | 5mm | Ribbed | 100mm | Single | 5 |
| Bladeless Trocar | Standard | EC5 DLB | 5mm | Ribbed | 100mm | Double | 5 |
| Bladeless Trocar | Standard | EC5 SLBT | 5mm | Spiral | 100mm | Single | 5 |
| Bladeless Trocar | Standard | EC10 SLB AUTO | 10mm | Ribbed | 100mm | Single | 5 |
| Bladeless Trocar | Standard | EC10 DLB AUTO | 10mm | Ribbed | 100mm | Double | 5 |
| Bladeless Trocar | Standard | EC10 SXLB AUTO | 10mm | Ribbed | 150mm | Single | 5 |
| Bladeless Trocar | Standard | EC12 SLB AUTO | 12mm | Ribbed | 100mm | Single | 5 |
| Bladeless Trocar | Standard | EC12 DLB AUTO | 12mm | Ribbed | 100mm | Double | 5 |
| Bladeless Trocar | Standard | EC12 SXLB AUTO | 12mm | Ribbed | 150mm | Single | 5 |
| Bladeless Trocar | Standard | EC15 SLB | 15mm | Ribbed | 100mm | Single | 10 |
See PDF
