Suction Irrigation

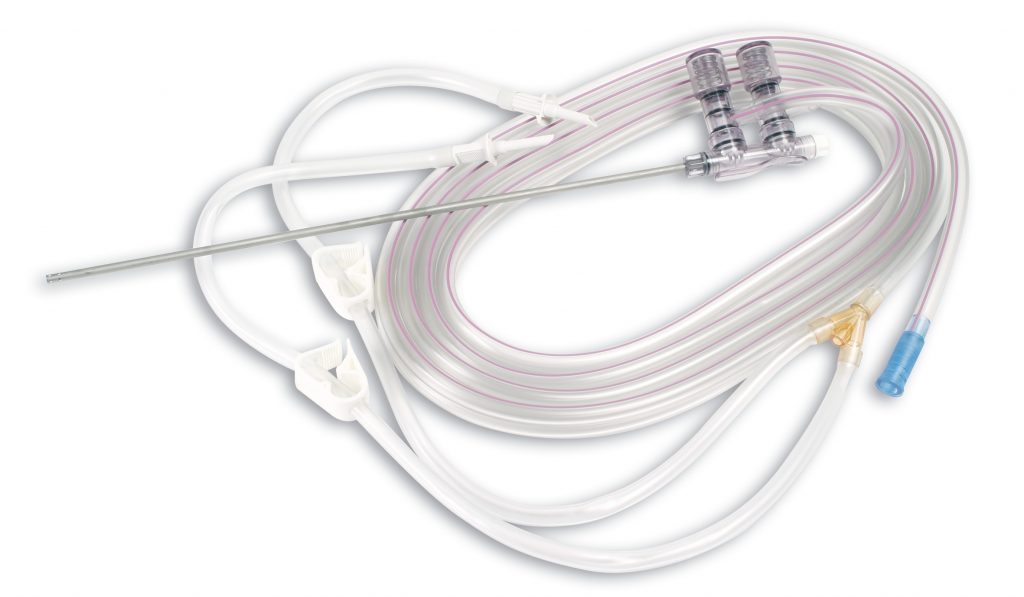

The LaproSurge Suction Irrigation range provides surgeons with multiple options to suit all needs for a range of laparoscopic procedures. The MD001 range is a modular system with a wide array of attachments to provide solutions to individual surgeon requirements. All devices feature an ergonomic traditional trumpet-grip handle to provide comfort for all hand sizes. The suction and irrigation flows are controlled by fingertip trumpet valve, which are colour coded for easy identification. The controls are lubricated to reduce friction and ensure smooth and precise function control. The device has wide internal channels to provide a high capacity, streamlined flow throughout the entire system and prevent blockages from blood clots or stones. The highly durable tubing is manufactured from a non-kink material with easy peel separation.
Features and benefits
- Available with dual-spike irrigation for increased speed of bag changes or for use with dual pumps
- Screw thread connection for quick probe changes

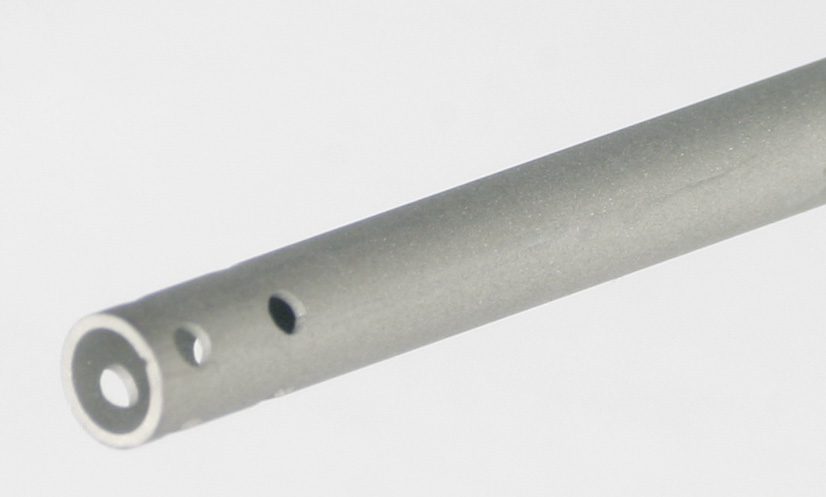

- Rounded tip for atraumatic dissection
- Ergonomic handle is reversible for additional flexibility
- Distal lateral holes prevent inadvertent tissue separation
- Rigid shaft is matte for anti-glare
- Easy entry of monopolar electrode through rear trumpet valve adapter
- Short 3mm set for use in paediatrics and compatible with accessories
- Non-modular MD002-5 economy set also available
| Product | Type | Code | Diameter | Working Length | Box Quantity |
|---|---|---|---|---|---|
| Suction Irrigation | Set | MD001-3 | 3mm | 330mm | 10 |
| 3mm Suction Irrigation (Short) | Set | MD001-3S | 3mm | 230mm | 10 |
| Suction Irrigation | Set | MD001-5 | 5mm | 330mm | 10 |
| Suction Irrigation (Long) | Set | MD001-45 | 5mm | 450mm | 10 |
| Suction Irrigation with L-Hook Electrode | Set | MD001-HE | 5mm | 330mm | 10 |
| Suction Irrigation (Economy) | Set | MD002-5 | 5mm | 330mm | 10 |
| Probe Attachment | Attachment | HDP001-3 | 3mm | 330mm | 10 |
| Probe Attachment (Short) | Attachment | HDP001-3S | 3mm | 230mm | 10 |
| Probe Attachment | Attachment | HDP 002(S) | 10mm | 330mm | 10 |
| Probe Attachment (Long) | Attachment | HDP 004(S) | 5mm | 450mm | 10 |
| L-Hook Electrode Attachment | Attachment | HDP-HE(S) | 5mm | 330mm | 10 |
| Spatula Electrode Attachment | Attachment | HDP-SE(S) | 5mm | 330mm | 10 |
See PDF
