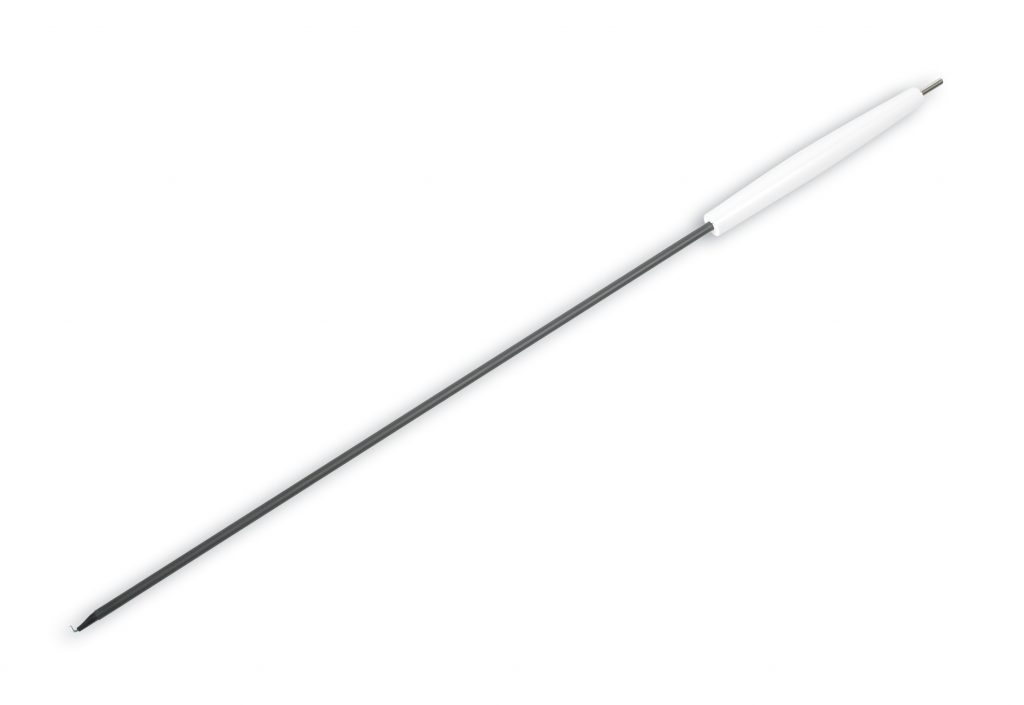

Monopolar Electrodes
Monopolar electrodes for coagulation, transection, and dissection of tissue during laparoscopic surgery. These electrodes are available in 3mm and 5mm and with a choice of L-Hook or Spatula tip designs. All devices have a low-profile handle design for comfortable pencil grip and are equipped with a standard 4mm male plug connector.




Features and benefits

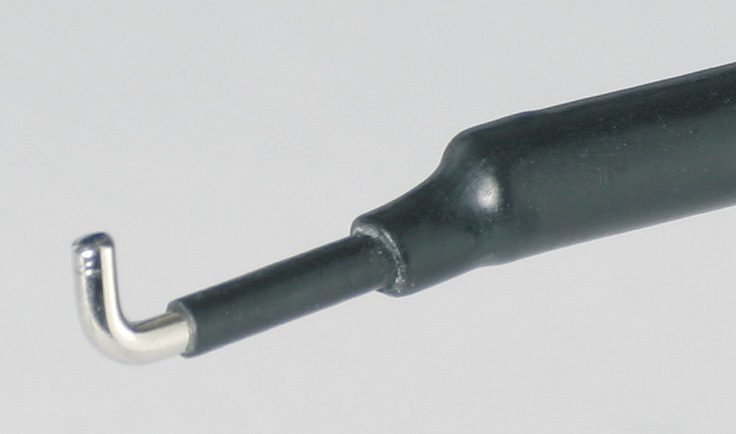

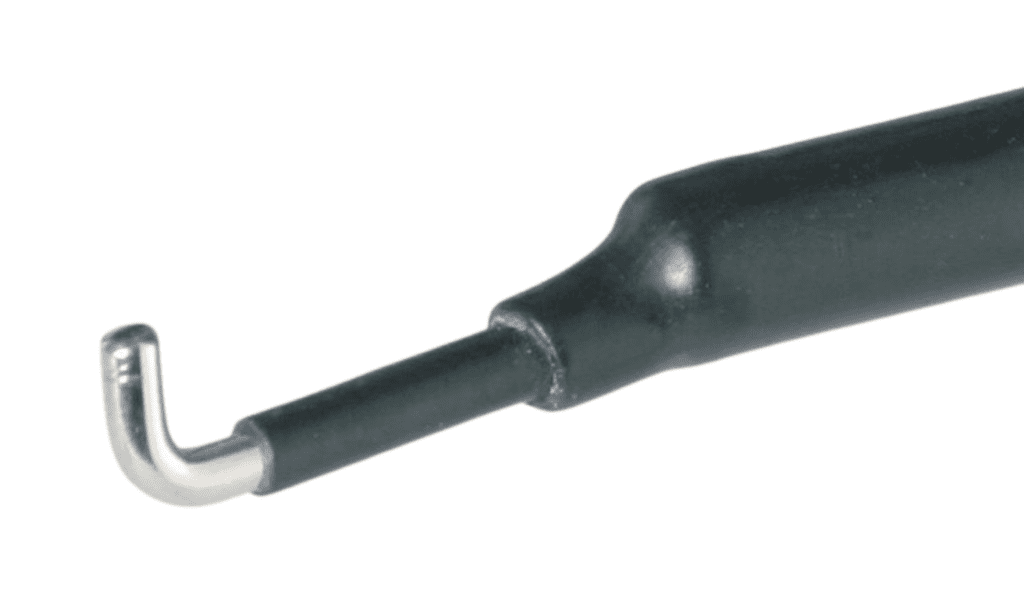

- Available with a choice of L-Hook or Spatula tip designs
- Low profile handle design for comfortable pencil grip
- Available in standard 330mm or longer 450mm shaft lengths, as well as 230mm short length in the 3mm range
- Double insulation along full shaft for safety
- All with monopolar connection
Also available – Integrated add on-accessories for use with MD001 suction irrigation system
Product | Code | Diameter | Working Length | Box Quantity |
---|---|---|---|---|
L-Hook Electrode | HE003 | 3mm | 330mm | 10 |
L-Hook Electrode (Short) | HE003-S | 3mm | 230mm | 10 |
L-Hook Electrode | HE002 | 5mm | 330mm | 10 |
L-Hook Electrode (Long) | HE002-45 | 5mm | 450mm | 10 |
L-Hook Electrode with Cable | HE002-C | 5mm | 330mm | 10 |
Spatula Electrode | SE002 | 5mm | 330mm | 10 |
Spatula Electrode (Long) | SE002-45 | 5mm | 450mm | 10 |
Spatula Electrode with Cable | SE002-C | 5mm | 330mm | 10 |
Monopolar Cable | MC001 | 3m | 25 |
